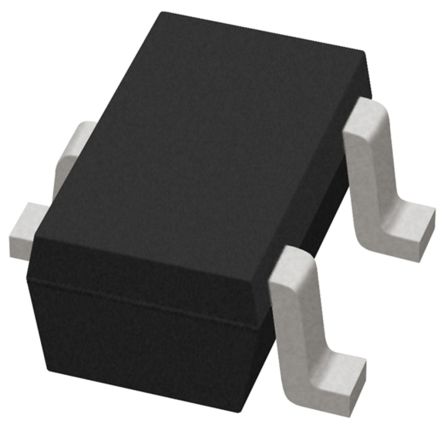

STMicroelectronics ESDCAN02-2BWY, Dual Bi-Directional TVS Diode, 250W, 3-Pin SOT-323 [ESDCAN02-2BWY]; 124-1109
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Bi-Directional |
| Diode Configuration | Complex Array |
| Maximum Clamping Voltage | 44V |
| Minimum Breakdown Voltage | 28.5V |
| Mounting Type | Surface Mount |
| Package Type | SOT-323 (SC-70) |
| Maximum Reverse Stand-off Voltage | 26.5V |
| Pin Count | 3 |
| Peak Pulse Power Dissipation | 250W |
| Maximum Peak Pulse Current | 3.7A |
| ESD Protection | Yes |
| Number of Elements per Chip | 2 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +175 °C |
| ESD Voltage | 30kV |
| Working Voltage | 26.5V |
| Dimensions | 1.35 x 2.2 x 1mm |
| Maximum Reverse Leakage Current | 50nA |
| Test Current | 1mA |
| Width | 2.2mm |
| Capacitance | 3.5pF |
| Length | 1.35mm |
| Height | 1mm |
