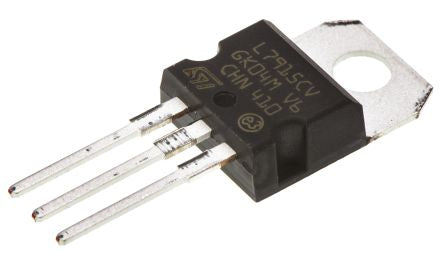

STMicroelectronics L7915CV Negative Voltage Regulator, 1.5A, -15 V 3-Pin, TO-220 [L7915CV]; 298-8621
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | -15 V |
| Maximum Output Current | 1.5A |
| Package Type | TO-220 |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Maximum Input Voltage | -35 V |
| Pin Count | 3 |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +150 °C |
| Number of Outputs | 1 |
| Polarity | Negative |
| Series | L79xx |
| Width | 4.6mm |
| Length | 10.4mm |
| Line Regulation | 300 mV |
| Load Regulation | 300 mV |
| Quiescent Current | 3mA |
| Dimensions | 10.4 x 4.6 x 9.15mm |
| Height | 9.15mm |
| Typical Dropout Voltage @ Current | 1.1 V @ 1 A |
