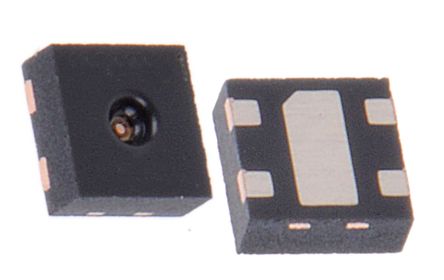

LD56050DPU120R, Linear Voltage Regulator [LD56050DPU120R]; 192-4611
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 1.2 V |
| Maximum Output Current | 500mA |
| Package Type | DFN |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Minimum Input Voltage | 0.8 V |
| Maximum Input Voltage | 5.5 V |
| Pin Count | 4 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Number of Outputs | 1 |
| Dropout Voltage Measurement Current | 0.5 A |
| Load Regulation | 1.5 mV |
| Line Regulation | 0.1 %/V |
| Accuracy | ±1.5% |
| Length | 1.2mm |
| Width | 1.2mm |
| Dimensions | 1.2 x 1.2 x 0.45mm |
| Typical Dropout Voltage @ Current | 250 mV @ 0.5 A |
| Height | 0.45mm |
