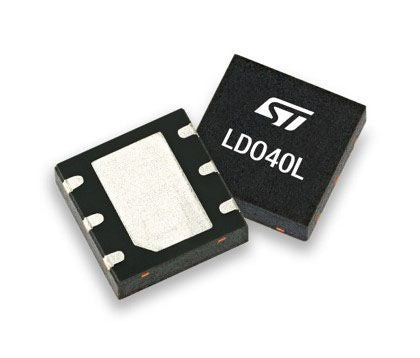

LDO40LPU33RY, Linear Voltage Regulator [LDO40LPU33RY]; 192-4641
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 3.3 V |
| Maximum Output Current | 400mA |
| Package Type | DFN |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Minimum Input Voltage | 3.5 V |
| Maximum Input Voltage | 38 V |
| Pin Count | 6 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Number of Outputs | 1 |
| Dropout Voltage Measurement Current | 400 mA |
| Line Regulation | 0.02 %/V |
| Length | 3.05mm |
| Reference Voltage | 1.16 → 1.23V |
| Accuracy | ±3% |
| Quiescent Current | 140µA |
| Typical Dropout Voltage @ Current | 270 mV @ 400 mA |
| Dimensions | 3.05 x 3.05 x 0.85mm |
| Width | 3.05mm |
| Automotive Standard | AEC-Q100 |
| Load Regulation | 0.002 %/mA |
| Height | 0.85mm |
