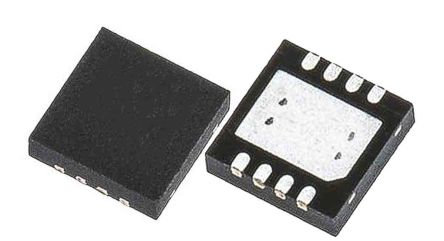

STMicroelectronics, LM258QT [LM258QT]; 189-1846
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | Dual Operational |
| Mounting Type | Surface Mount |
| Package Type | DFN |
| Power Supply Type | Single |
| Number of Channels per Chip | 2 |
| Pin Count | 8 |
| Typical Single Supply Voltage | 3 → 30 V |
| Typical Gain Bandwidth Product | 1.1MHz |
| Output Type | Swing |
| Typical Slew Rate | 0.6V/µs |
| Maximum Operating Frequency | 100 kHz |
| Maximum Operating Temperature | +105 °C |
| Minimum Operating Temperature | -40 °C |
| Typical Voltage Gain | 100 dB |
| Input Voltage Range | 3 → 30 V |
| Width | 2.15mm |
| Height | 0.55mm |
| Offset Voltage | 5mV |
| Output Current | 20 (Sink) mA, 60 (Source) mA |
| Dimensions | 2.15 x 2.15 x 0.55mm |
| Input Offset Current | 30nA |
| Maximum Input Voltage | 30 V |
| Typical Input Voltage Noise Density | 55nV/√Hz |
| Length | 2.15mm |
| Minimum Input Voltage | 3 V |
