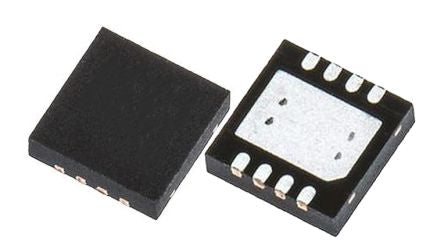

STMicroelectronics, M24C08-RMC6TG [M24C08-RMC6TG]; 190-7626
Mã nhà sản xuất
M24C08-RMC6TG
Thương hiệu
Quy cách đóng gói
100 cái (băng liên tục)
Mã kho
1907626
Liên hệ
Compatible with I2C bus modes:
400 kHz
100 kHz
Memory array:
8 Kbit (1 Kbyte) of EEPROM
Page size: 16 byte
Single supply voltage:
M24C08-W: 2.5 V to 5.5 V
M24C08-R: 1.8 V to 5.5 V
M24C08-F: 1.7 V to 5.5 V (full temperature range) and 1.6 V to 1.7 V (limited temperature range)
Write:
Byte Write within 5 ms
Page Write within 5 ms
Operating temperature range:
from -40 °C up to +85 °C
Random and sequential Read modes
Write protect of the whole memory array
Enhanced ESD/Latch-Up protection
More than 4 million Write cycles
More than 200-years data retention
Packages
Halogen-free
