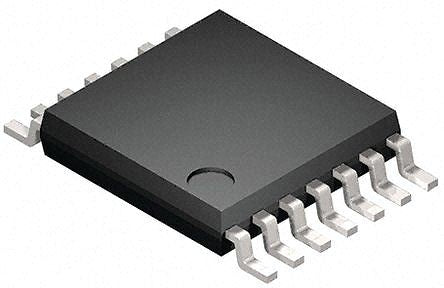

STMicroelectronics M74HC126YTTR, Quad Bus Buffer, 160 ns @ 150 pF 7.8mA, 14-Pin TSSOP [M74HC126YTTR]; 168-8790
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | HC |
| Number of Element Inputs | 1 |
| Number of Elements per Chip | 4 |
| Maximum Propagation Delay Time @ Maximum CL | 160 ns @ 150 pF |
| Maximum High Level Output Current | -7.8mA |
| Maximum Low Level Output Current | 7.8mA |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Pin Count | 14 |
| Dimensions | 5.1 x 4.48 x 1.05mm |
| Height | 1.05mm |
| Length | 5.1mm |
| Maximum Operating Supply Voltage | 6 V |
| Maximum Operating Temperature | +125 °C |
| Width | 4.48mm |
| Minimum Operating Supply Voltage | 2 V |
| Minimum Operating Temperature | -55 °C |
| Propagation Delay Test Condition | 150pF |
