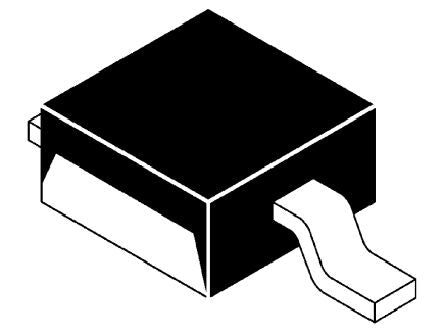

STMicroelectronics SM2T3V3A, Uni-Directional TVS Diode, 200W, 2-Pin DO-216AA [SM2T3V3A]; 920-9142
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 6.8V |
| Minimum Breakdown Voltage | 3.6V |
| Mounting Type | Surface Mount |
| Package Type | DO-216AA |
| Maximum Reverse Stand-off Voltage | 3.3V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 200W |
| Maximum Peak Pulse Current | 30A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature | +150 °C |
| Test Current | 1mA |
| Width | 2.05mm |
| Height | 1.15mm |
| Length | 2.05mm |
| Dimensions | 2.05 x 2.05 x 1.15mm |
| Maximum Reverse Leakage Current | 500µA |
