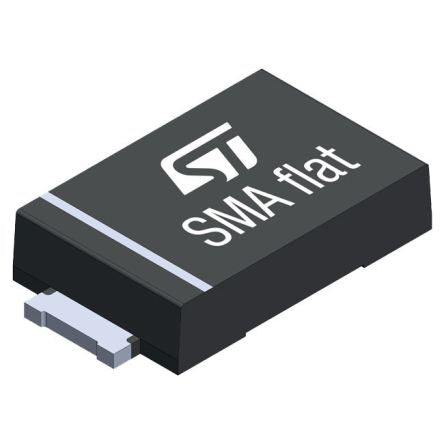

SMA4F33AY, TVS Diodes [SMA4F33AY]; 192-0654
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 69.7V |
| Minimum Breakdown Voltage | 36.7V |
| Mounting Type | Surface Mount |
| Package Type | DO221-AC |
| Maximum Reverse Stand-off Voltage | 33V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 400W |
| Maximum Peak Pulse Current | 33A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +175 °C |
| Automotive Standard | AEC-Q101 |
| Dimensions | 4.6 x 2.9 x 1.05mm |
| Width | 2.9mm |
| Height | 1.05mm |
| Capacitance | 330pF |
| Maximum Reverse Leakage Current | 1µA |
| Length | 4.6mm |
