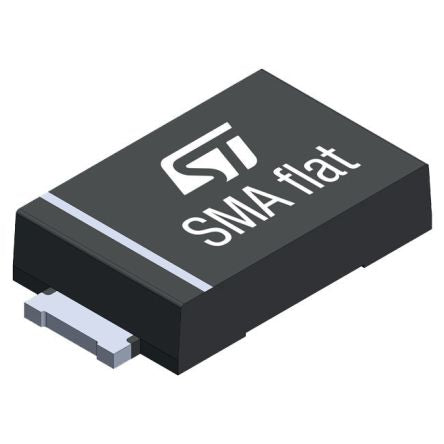

SMA6F6.5A, TVS Diodes [SMA6F6.5A]; 192-4754
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 11.2 V, 14.5 V |
| Minimum Breakdown Voltage | 7.2V |
| Mounting Type | Surface Mount |
| Package Type | SMA Flat |
| Maximum Reverse Stand-off Voltage | 6.5V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 600W |
| Maximum Peak Pulse Current | 56 A, 276 A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +175 °C |
| Maximum Reverse Leakage Current | 50µA |
| Working Voltage | 6.5V |
| Height | 1.05mm |
| Width | 2.9mm |
| Length | 4.6mm |
| Capacitance | 150pF |
| Test Current | 10mA |
| Dimensions | 4.6 x 2.9 x 1.05mm |
