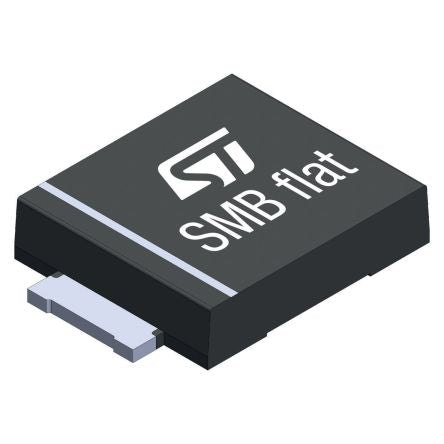

SMB6F14A, TVS Diodes [SMB6F14A]; 192-5113
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 23.1 V, 29 V |
| Minimum Breakdown Voltage | 15.7V |
| Mounting Type | Surface Mount |
| Package Type | SMB Flat (DO221-AA) |
| Maximum Reverse Stand-off Voltage | 14V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 600W |
| Maximum Peak Pulse Current | 26 A, 136 A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +175 °C |
| Length | 3.95mm |
| ESD Voltage | 30kV |
| Capacitance | 150pF |
| Dimensions | 3.95 x 4.6 x 1.05mm |
| Test Current | 1mA |
| Maximum Reverse Leakage Current | 1µA |
| Working Voltage | 14V |
| Width | 4.6mm |
| Height | 1.05mm |
