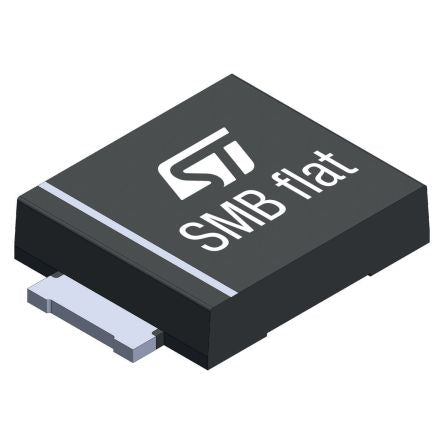

SMB6F31AY, TVS Diodes [SMB6F31AY]; 192-4791
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 50.2 V, 65 V |
| Minimum Breakdown Voltage | 34.2V |
| Mounting Type | Surface Mount |
| Package Type | SMB Flat (DO221-AA) |
| Maximum Reverse Stand-off Voltage | 31V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 600W |
| Maximum Peak Pulse Current | 12.3 A, 61 A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +175 °C |
| ESD Voltage | 30kV |
| Dimensions | 3.95 x 4.6 x 1.05mm |
| Maximum Reverse Leakage Current | 1µA |
| Test Current | 1mA |
| Width | 4.6mm |
| Height | 1.05mm |
| Working Voltage | 31V |
| Length | 3.95mm |
| Capacitance | 150pF |
