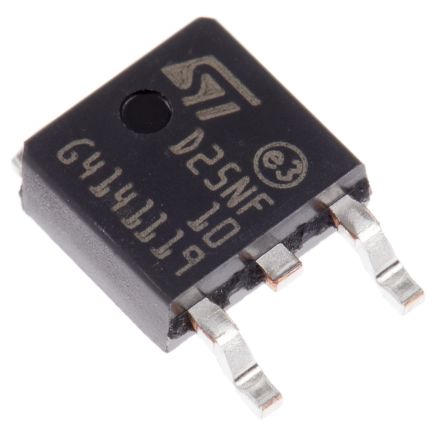

STD25NF10T4 N-Channel MOSFET, 25 A, 100 V STripFET II, 3-Pin DPAK STMicroelectronics [STD25NF10T4]; 687-5061
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 25 A |
| Maximum Drain Source Voltage | 100 V |
| Package Type | DPAK (TO-252) |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 38 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 100 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Typical Gate Charge @ Vgs | 55 nC @ 10 V |
| Height | 2.4mm |
| Maximum Operating Temperature | +175 °C |
| Length | 6.6mm |
| Minimum Operating Temperature | -55 °C |
| Series | STripFET II |
| Width | 6.2mm |
| Transistor Material | Si |
