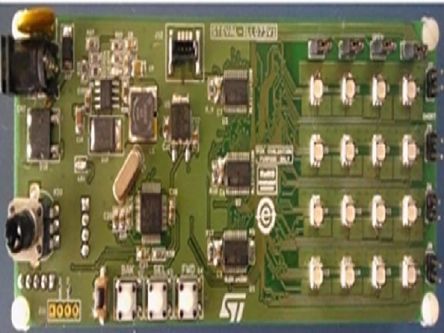

STMicroelectronics STEVAL-ILL073V1, RGB LED driver LED Driver Evaluation Board for ALED1642GW, STM8A for Autumotive [STEVAL-ILL073V1]; 208-5064
STMicroelectronics STEVAL-ILL073V1, RGB LED driver LED Driver Evaluation Board for ALED1642GW, STM8A for Autumotive là công cụ phát triển LED.
- Dùng với: Autumotive Lighting.
- Thông số chính: Công nghệ LED: LED Driver; Phân loại bộ kit: Bo mạch đánh giá; Linh kiện chính: ALED1642GW, STM8A; Tên bộ kit: RGB LED driver.
Mô tả gốc của nhà sản xuất (tiếng Anh):
The STEVAL-ILL073V1 is a high brightness, RGB LED array driver system evaluation board with local dimming and diagnostics based on the ALED1642GW independent PWM LED driver controlled through an STM8A microcontroller SPI interface. A 16 RGB LED matrix is driven by three ALED1642GW LED drivers, one for each channel
i.e., Red, Green and Blue. The on-board A7986A DC-DC converter, accepting standard adapter input voltages, provides the voltages and power for the overall operation of the board. The STEVAL-ILL073V1 includes a USB-UART daughterboard bridge for communication with a PC.The evaluation board is also equipped with jumpers to simulate LED open circuit and LED short circuit faults, and a 4-pin SWIM connector to debug and to develop the STM8 microcontroller firmware.
High brightness 4 x 4 RGB LED matrix
Complete hardware and software package
Various preconfigured and programmable patterns
Open / short error simulation and real-time detection
6 to 28 V DC polarity-independent power supply
The STEVAL-ILL073V1 is a high brightness, RGB LED array driver system evaluation board with local dimming and diagnostics based on the ALED1642GW independent PWM LED driver controlled through an STM8A microcontroller SPI interface. A 16 RGB LED matrix is driven by three ALED1642GW LED drivers, one for each channel
i.e., Red, Green and Blue. The on-board A7986A DC-DC converter, accepting standard adapter input voltages, provides the voltages and power for the overall operation of the board. The STEVAL-ILL073V1 includes a USB-UART daughterboard bridge for communication with a PC.The evaluation board is also equipped with jumpers to simulate LED open circuit and LED short circuit faults, and a 4-pin SWIM connector to debug and to develop the STM8 microcontroller firmware.
High brightness 4 x 4 RGB LED matrix
Complete hardware and software package
Various preconfigured and programmable patterns
Open / short error simulation and real-time detection
6 to 28 V DC polarity-independent power supply
