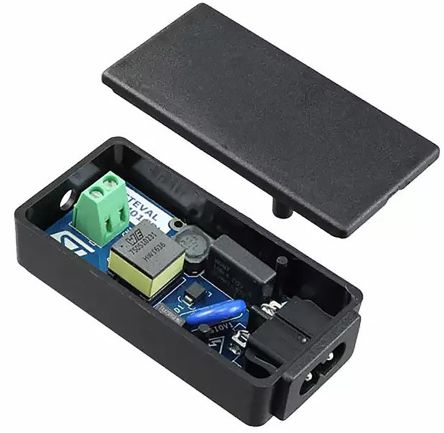

STMicroelectronics, STEVAL Module for X-NUCLEO-PLM01A1 for SM6T15CA, STEVAL-XPLM01CPL [STEVAL-XPLM01CPL]; 146-3872

The STEVAL-XPLM01CPL is a simple yet very useful tool for power line communication testing on AC power networks. It includes simple two-wire connectivity to any PLC transmitter/receiver and a standard connector for an AC power cord (2-pin AC plug, 8-shape female end). The STEVAL-XPLM01CPL is suitable for lab measurements using equipment like an isolated probe for an oscilloscope or a spectrum analyzer, or to inject a signal from an arbitrary function generator.

Complete AC coupling circuit suitable for use with any power line communication (PLC) solution

Can be paired with the X-NUCLEO-PLM01A1 to add full AC coupling capability

Tuned for transmission inside CENELEC B to D bands

Implements isolation and protections for safe operation

Suitable for the connection of laboratory equipment for PLC measurement and testing

RoHS compliant
