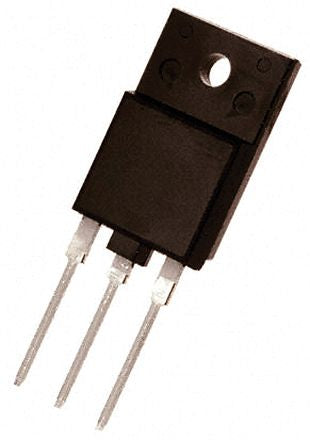

STFW24N60M2 N-Channel MOSFET, 18 A, 650 V MDmesh, 3-Pin TO-3PF STMicroelectronics [STFW24N60M2]; 168-8796
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 18 A |
| Maximum Drain Source Voltage | 650 V |
| Package Type | TO-3PF |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 190 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 48 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -25 V, +25 V |
| Number of Elements per Chip | 1 |
| Width | 5.7mm |
| Minimum Operating Temperature | -55 °C |
| Series | MDmesh |
| Height | 26.7mm |
| Length | 15.7mm |
| Transistor Material | Si |
| Maximum Operating Temperature | +150 °C |
| Typical Gate Charge @ Vgs | 29 nC @ 10 V |
