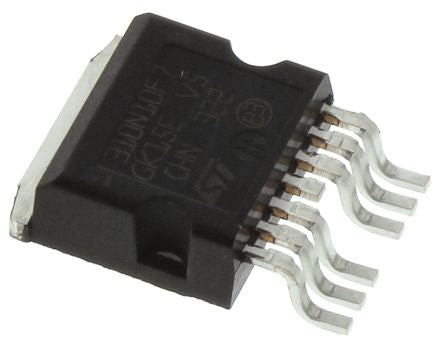

STH310N10F7-6 N-Channel MOSFET, 180 A, 100 V STripFET H7, 7-Pin H2PAK STMicroelectronics [STH310N10F7-6]; 786-3704
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 180 A |
| Maximum Drain Source Voltage | 100 V |
| Package Type | H2PAK |
| Mounting Type | Surface Mount |
| Pin Count | 7 |
| Maximum Drain Source Resistance | 2.3 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4.5V |
| Minimum Gate Threshold Voltage | 2.5V |
| Maximum Power Dissipation | 315 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Width | 10.4mm |
| Typical Gate Charge @ Vgs | 180 nC @ 10 V |
| Length | 15.25mm |
| Maximum Operating Temperature | +175 °C |
| Minimum Operating Temperature | -55 °C |
| Series | STripFET H7 |
| Height | 4.8mm |
| Transistor Material | Si |
