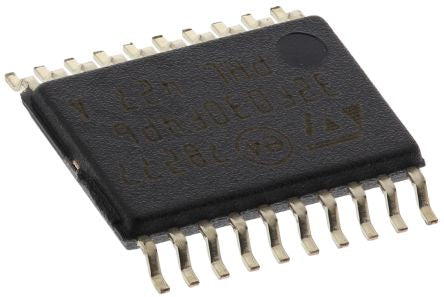

STMicroelectronics STM32F030F4P6, 32bit ARM Cortex M0 Microcontroller, 48MHz, 16 kB Flash, 20-Pin TSSOP [STM32F030F4P6]; 919-6260
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | STM32F |
| Package Type | TSSOP |
| Mounting Type | Surface Mount |
| Pin Count | 20 |
| Device Core | ARM Cortex M0 |
| Data Bus Width | 32bit |
| Program Memory Size | 16 kB |
| Maximum Frequency | 48MHz |
| RAM Size | 4 kB |
| Number of PWM Units | 1 |
| ADC Channels | 11 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 3.6 V |
| Number of Timers | 5 |
| Number of I2C Channels | 1 |
| Program Memory Type | Flash |
| Pulse Width Modulation | 1(6 x 16 bit) |
| Dimensions | 6.6 x 4.5 x 1.05mm |
| Timers | 5 x 16 bit |
| PWM Resolution | 16bit |
| Minimum Operating Temperature | -40 °C |
| Timer Resolution | 16bit |
| ADCs | 1(11 x 12 bit) |
| Length | 6.6mm |
| Maximum Operating Temperature | +85 °C |
| Number of ADC Units | 1 |
| ADC Resolution | 12bit |
| Instruction Set Architecture | RISC |
| Height | 1.05mm |
| Width | 4.5mm |
| Number of USART Channels | 1 |
| PWM Channels | 6 |
