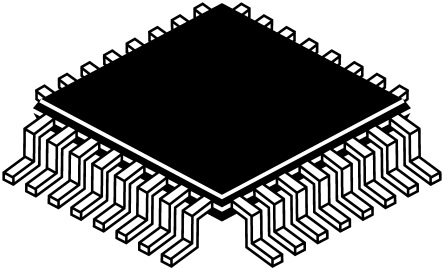

STMicroelectronics STM32F051K4T6, 32bit ARM Cortex M0 Microcontroller, 48MHz, 16 kB Flash, 32-Pin LQFP [STM32F051K4T6]; 795-7590
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | STM32F |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 32 |
| Device Core | ARM Cortex M0 |
| Data Bus Width | 32bit |
| Program Memory Size | 16 kB |
| Maximum Frequency | 48MHz |
| RAM Size | 4 kB |
| Number of PWM Units | 1 |
| ADC Channels | 13 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 3.6 V |
| ADCs | 1(13 x 12 bit) |
| Length | 7.2mm |
| Maximum Operating Temperature | +85 °C |
| Number of ADC Units | 1 |
| Instruction Set Architecture | MCU |
| PWM Resolution | 16bit |
| Minimum Operating Temperature | -40 °C |
| Number of Timers | 11 |
| Timers | 1 x 24 bit, 1 x 32 bit, 1(7 x 16 bit), 8 x 16 bit |
| Number of USART Channels | 1 |
| ADC Resolution | 12bit |
| Width | 7.2mm |
| PWM Channels | 6 |
| Height | 1.45mm |
| Timer Resolution | 16 bit, 24 bit, 32 bit |
| Dimensions | 7.2 x 7.2 x 1.45mm |
| Number of I2C Channels | 1 |
| Pulse Width Modulation | 1(6 x 16 bit) |
| Program Memory Type | Flash |
