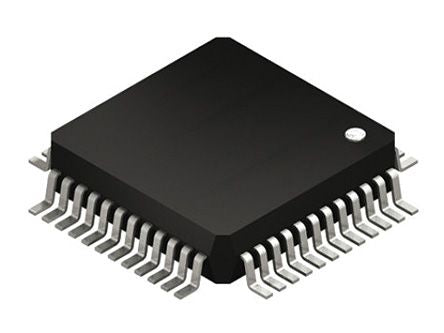

STMicroelectronics STM32F072CBT6, 32bit ARM Microcontroller, 48MHz, 128 kB Flash, 48-Pin LQFP [STM32F072CBT6]; 880-5392
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | STM32F |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 48 |
| Device Core | ARM |
| Data Bus Width | 32bit |
| Program Memory Size | 128 kB |
| Maximum Frequency | 48MHz |
| RAM Size | 16 kB |
| USB Channels | 1 |
| Number of PWM Units | 1 |
| ADC Channels | 13 |
| Typical Operating Supply Voltage | 2 → 3.6 V |
| ADCs | 1(13 x 12 bit) |
| Timer Resolution | 16 bit, 32 bit |
| Height | 1.45mm |
| PWM Channels | 6 |
| Width | 7.2mm |
| Timers | 1 x 32 bit, 8 x 16 bit |
| Dimensions | 7.2 x 7.2 x 1.45mm |
| Pulse Width Modulation | 1(6 x 16 bit) |
| Program Memory Type | Flash |
| Number of Timers | 9 |
| Length | 7.2mm |
| Maximum Operating Temperature | +125 °C |
| Number of ADC Units | 1 |
| Instruction Set Architecture | RISC |
| ADC Resolution | 12bit |
| Minimum Operating Temperature | -40 °C |
| PWM Resolution | 16bit |
