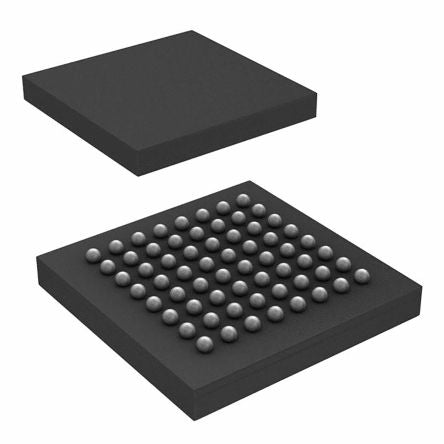

STM32F072RBH6, 32BIT MICROCONTROLLER [STM32F072RBH6]; 192-4030
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | STM32 |
| Package Type | UFBGA |
| Mounting Type | Surface Mount |
| Pin Count | 64 |
| Device Core | ARM Cortex M0 |
| Data Bus Width | 32bit |
| Program Memory Size | 128 kB |
| Maximum Frequency | 48MHz |
| RAM Size | 16 kB |
| USB Channels | 1 |
| ADC Channels | 19 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 2 → 3.6 V |
| Number of I2C Channels | 2 |
| Number of Timers | 4 |
| ADCs | 1 (19 x 12 bit) |
| Length | 5.15mm |
| Maximum Operating Temperature | +85 °C |
| Program Memory Type | Flash |
| Number of ADC Units | 1 |
| Number of CAN Channels | 1 |
| Instruction Set Architecture | RISC |
| Dimensions | 5.15 x 5.15 x 0.5mm |
| Number of USART Channels | 4 |
| Timers | 1 (1 x 16 bit), 1 (1 x 32 bit), 1 (2 x 16 bit), 1 (5 x 16 bit) |
| ADC Resolution | 12bit |
| Width | 5.15mm |
| Height | 0.5mm |
| Timer Resolution | 16 bit, 32 bit |
| Minimum Operating Temperature | -40 °C |
