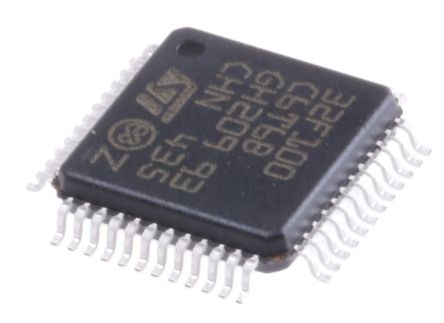

STMicroelectronics STM32F100C6T6B, 32bit ARM Cortex M3 Microcontroller, 24MHz, 32 kB Flash, 48-Pin LQFP [STM32F100C6T6B]; 168-7325
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | STM32F |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 48 |
| Device Core | ARM Cortex M3 |
| Data Bus Width | 32bit |
| Program Memory Size | 32 kB |
| Maximum Frequency | 24MHz |
| RAM Size | 4 kB |
| Number of PWM Units | 7 |
| ADC Channels | 10 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 2 → 3.6 V |
| Number of I2C Channels | 1 |
| Number of Timers | 11 |
| Program Memory Type | Flash |
| Pulse Width Modulation | 3(16 bit), 3(4 x 16 bit), 6 x 16 bit |
| Timers | 11 x 16 bit |
| Dimensions | 7.2 x 7.2 x 1.45mm |
| ADC Resolution | 12bit |
| Minimum Operating Temperature | -40 °C |
| PWM Resolution | 16bit |
| Instruction Set Architecture | RISC |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Length | 7.2mm |
| ADCs | 10 x 12 bit |
| Timer Resolution | 16bit |
| Height | 1.45mm |
| PWM Channels | 4, 6 |
| Width | 7.2mm |
| Number of USART Channels | 2 |
