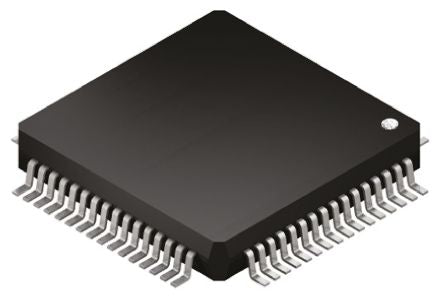

STMicroelectronics STM32F100RET6B, 32bit ARM Cortex M3 Microcontroller, 24MHz, 512 kB Flash, 64-Pin LQFP [STM32F100RET6B]; 165-6771
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | STM32F |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 64 |
| Device Core | ARM Cortex M3 |
| Data Bus Width | 32bit |
| Program Memory Size | 512 kB |
| Maximum Frequency | 24MHz |
| RAM Size | 32 kB |
| Number of PWM Units | 1 |
| ADC Channels | 16 |
| Number of SPI Channels | 3 |
| Typical Operating Supply Voltage | 3.6 V |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Length | 10mm |
| ADCs | 1(16 x 12 bit) |
| Timer Resolution | 16 bit, 24 bit |
| Instruction Set Architecture | MCU |
| Height | 1.45mm |
| PWM Channels | 6 |
| ADC Resolution | 12bit |
| Minimum Operating Temperature | -40 °C |
| PWM Resolution | 16bit |
| Number of Timers | 17 |
| Number of I2C Channels | 2 |
| Width | 10mm |
| Number of USART Channels | 3 |
| Timers | 1 x 24 bit, 1(6 x 16 bit), 7 x 16 bit, 7(4 x 16 bit) |
| Dimensions | 10 x 10 x 1.45mm |
| Number of UART Channels | 2 |
| Pulse Width Modulation | 1(6 x 16 bit) |
| Program Memory Type | Flash |
