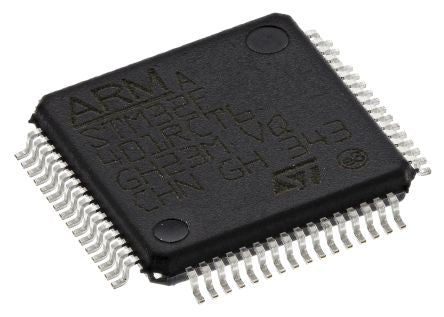

STMicroelectronics STM32F401RCT6, 32bit ARM Cortex M4 MCU, 84MHz, 256 kB Flash, 64-Pin LQFP [STM32F401RCT6]; 919-6298
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | STM32F |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 64 |
| Device Core | ARM Cortex M4 |
| Data Bus Width | 32bit |
| Program Memory Size | 256 kB |
| Maximum Frequency | 84MHz |
| RAM Size | 64 kB |
| USB Channels | 1 |
| Number of PWM Units | 8 |
| ADC Channels | 10, 16 |
| Number of SPI Channels | 7 |
| Typical Operating Supply Voltage | 1.8 V |
| PWM Resolution | 16 bit, 32 bit |
| Length | 10mm |
| ADCs | 10-ch x 12-bit, 16-ch x 12-bit |
| Minimum Operating Temperature | -40 °C |
| Timer Resolution | 16 bit, 32 bit |
| Height | 1.45mm |
| Number of LIN Channels | 1 |
| PWM Channels | 4 |
| Width | 10mm |
| ADC Resolution | 12bit |
| Number of USART Channels | 3 |
| Timers | 2 x 32 bit, 6 x 16 bit |
| Dimensions | 10 x 10 x 1.45mm |
| Pulse Width Modulation | 2(4 x 32 bit), 6(4 x 16 bit) |
| Program Memory Type | Flash |
| Number of I2C Channels | 3 |
| Number of Timers | 8 |
| Maximum Operating Temperature | +85 °C |
| Instruction Set Architecture | DSP |
| Number of ADC Units | 1 |
