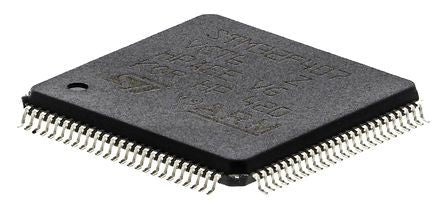

STMicroelectronics STM32F407VGT6, 32bit ARM Cortex M4F Microcontroller, 168MHz, 1.024 MB Flash, 100-Pin LQFP [STM32F407VGT6]; 920-6468
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | STM32F |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 100 |
| Device Core | ARM Cortex M4F |
| Data Bus Width | 32bit |
| Program Memory Size | 1.024 MB |
| Maximum Frequency | 168MHz |
| RAM Size | 4 kB, 192 kB |
| USB Channels | 1 x Device, 1 x Host, 1 x OTG |
| Number of PWM Units | 1 |
| ADC Channels | 16 |
| Number of SPI Channels | 3 |
| Typical Operating Supply Voltage | 1.8 → 3.6 V |
| Number of Timers | 14 |
| Number of Ethernet Channels | 1 |
| Program Memory Type | Flash |
| Pulse Width Modulation | 2 x 16 bit |
| Number of UART Channels | 2 |
| Number of I2C Channels | 3 |
| Minimum Operating Temperature | -40 °C |
| Number of ADC Units | 3 |
| Number of CAN Channels | 2 |
| Instruction Set Architecture | RISC |
| ADC Resolution | 12bit |
| PWM Resolution | 16bit |
| Dimensions | 14.2 x 14.2 x 1.45mm |
| ADCs | 3(16 x 12 bit) |
| Maximum Operating Temperature | +85 °C |
| Timers | 2 x 32 bit, 12 x 16 bit |
| Number of USART Channels | 4 |
| Width | 14.2mm |
| Length | 14.2mm |
| Height | 1.45mm |
| Number of LIN Channels | 1 |
| PWM Channels | 2 |
| Timer Resolution | 16 bit, 32 bit |
| Maximum Number of Ethernet Channels | 1 |
