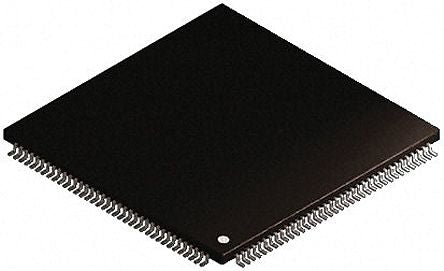

STMicroelectronics STM32F427ZIT6, 32bit ARM Cortex M4 MCU, 180MHz, 2.048 MB Flash, 144-Pin LQFP [STM32F427ZIT6]; 145-9541
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | STM32F |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 144 |
| Device Core | ARM Cortex M4 |
| Data Bus Width | 32bit |
| Program Memory Size | 2.048 MB |
| Maximum Frequency | 180MHz |
| RAM Size | 4 (Backup) kB, 256 (System) kB |
| USB Channels | 1 |
| Number of PWM Units | 2 |
| ADC Channels | 24 |
| Typical Operating Supply Voltage | 1.7 → 3.6 V |
| Maximum Operating Temperature | +125 °C |
| Dimensions | 22.2 x 22.2 x 1.45mm |
| Number of Timers | 14 |
| ADCs | 3(24 x 12 bit) |
| Length | 22.2mm |
| PWM Resolution | 16bit |
| Pulse Width Modulation | 2(16 bit) |
| Instruction Set Architecture | RISC |
| Number of ADC Units | 3 |
| Program Memory Type | Flash |
| Height | 1.45mm |
| Timer Resolution | 16 bit, 32 bit |
| ADC Resolution | 12bit |
| Data Rate | 480Mbps |
| Timers | 2 x 32 bit, 12 x 16 bit |
| Maximum Number of Ethernet Channels | 1 |
| Width | 22.2mm |
| Minimum Operating Temperature | -40 °C |
