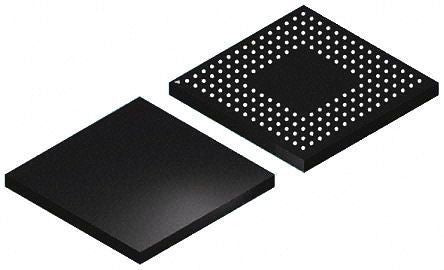

STMicroelectronics STM32F746IGK6, 32bit ARM Cortex M7 Microcontroller, 216MHz, 1.024 MB Flash, OTP, 176-Pin UFBGA [STM32F746IGK6]; 882-0275
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | STM32F |
| Package Type | UFBGA |
| Mounting Type | Surface Mount |
| Pin Count | 176 |
| Device Core | ARM Cortex M7 |
| Data Bus Width | 32bit |
| Program Memory Size | 1.024 MB |
| Maximum Frequency | 216MHz |
| RAM Size | 340 kB |
| USB Channels | 2 |
| Number of PWM Units | 2 |
| ADC Channels | 24 |
| Typical Operating Supply Voltage | 1.7 → 3.6 V |
| PWM Channels | 6 |
| Width | 10.05mm |
| Data Rate | 480Mbps |
| Timers | 2 x 32 bit, 13 x 16 bit |
| Dimensions | 10.05 x 10.05 x 0.5mm |
| Height | 0.5mm |
| Timer Resolution | 16 bit, 32 bit |
| ADCs | 3 (24 x 12 bit) |
| Length | 10.05mm |
| Pulse Width Modulation | 2 (6 x 16 bit) |
| Number of ADC Units | 3 |
| Instruction Set Architecture | RISC |
| PWM Resolution | 16bit |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 12bit |
| Maximum Number of Ethernet Channels | 1 |
| Number of Timers | 15 |
| Program Memory Type | Flash, OTP |
| Maximum Operating Temperature | +85 °C |
