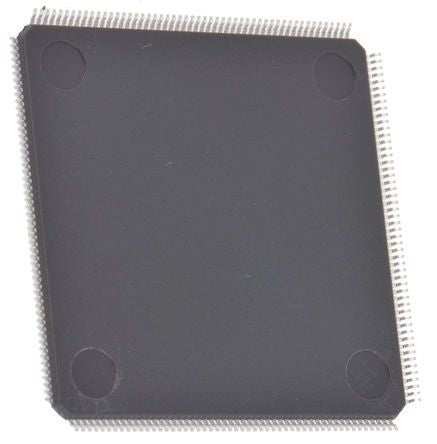

STMicroelectronics STM32F769BIT6, 32bit ARM Cortex M7 Microcontroller, 216MHz, 2.048 MB Flash, 208-Pin LQFP [STM32F769BIT6]; 166-0971
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | STM32 |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 208 |
| Device Core | ARM Cortex M7 |
| Data Bus Width | 32bit |
| Program Memory Size | 2.048 MB |
| Maximum Frequency | 216MHz |
| RAM Size | 512 kB |
| USB Channels | 2 |
| ADC Channels | 24 |
| Typical Operating Supply Voltage | 1.7 → 3.6 V |
| Timers | 2 x 32 bit, 12 x 16 bit |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 28.2 x 28.2 x 1.45mm |
| Instruction Set Architecture | Harvard, RISC |
| Number of ADC Units | 3 |
| Program Memory Type | Flash |
| Maximum Operating Temperature | +85 °C |
| Length | 28.2mm |
| ADCs | 3 (24 x 12 bit) |
| Number of Timers | 12 |
| Timer Resolution | 16 bit, 32 bit |
| Height | 1.45mm |
| Width | 28.2mm |
| Maximum Number of Ethernet Channels | 1 |
| Data Rate | 480Mbps |
| ADC Resolution | 12bit |
