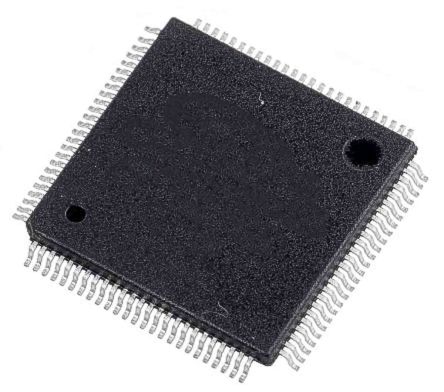

STM32G473VET6, 32Bit Microcontrollers [STM32G473VET6]; 193-9854
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | STM32 |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 100 |
| Device Core | ARM Cortex M4 |
| Data Bus Width | 32bit |
| Program Memory Size | 512 kB |
| Maximum Frequency | 170MHz |
| RAM Size | 128 kB |
| USB Channels | 1 |
| ADC Channels | 42 |
| Number of SPI Channels | 4 |
| Typical Operating Supply Voltage | 1.71 → 3.6 V |
| ADCs | 5 (42 x 12 bit) |
| Number of Timers | 2 |
| Number of I2C Channels | 4 |
| Length | 14.2mm |
| Timer Resolution | 16 bit, 32 bit |
| Number of UART Channels | 2 |
| Maximum Operating Temperature | +85 °C |
| Program Memory Type | Flash |
| Number of ADC Units | 5 |
| Number of CAN Channels | 3 |
| ADC Resolution | 12bit |
| Width | 14.2mm |
| Instruction Set Architecture | RISC |
| Dimensions | 14.2 x 14.2 x 1.45mm |
| Height | 1.45mm |
| Number of USART Channels | 3 |
| Minimum Operating Temperature | -40 °C |
