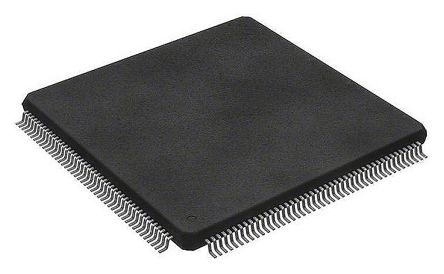

STMicroelectronics STM32H743IIT6, 32bit ARM Cortex M7 Microcontroller, 400MHz, 2 MB Flash, 176-Pin LQFP [STM32H743IIT6]; 165-3235
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | STM32 |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 176 |
| Device Core | ARM Cortex M7 |
| Data Bus Width | 32bit |
| Program Memory Size | 2 MB |
| Maximum Frequency | 400MHz |
| RAM Size | 1 MB |
| USB Channels | 2 |
| Number of PWM Units | 2 |
| ADC Channels | 20 |
| Number of SPI Channels | 6 |
| Typical Operating Supply Voltage | 3.6 (Maximum) V |
| Number of Ethernet Channels | 1 |
| Number of I2C Channels | 4 |
| PWM Resolution | 32bit |
| Instruction Set Architecture | RISC |
| Number of CAN Channels | 2 |
| Dimensions | 24.1 x 24.1 x 1.45mm |
| Pulse Width Modulation | 2 (2 x 32 bit) |
| Number of ADC Units | 3 |
| Timers | 1 (1 x 16 bit), 1 (10 x 16 bit), 1 (2 x 16 bit), 1 (5 x 16 bit) |
| Maximum Operating Temperature | +85 °C |
| Program Memory Type | Flash |
| Length | 24.1mm |
| ADCs | 3 (20 x 16 bit) |
| Number of USART Channels | 4 |
| Timer Resolution | 16 bit, 32 bit |
| Height | 1.45mm |
| Number of LIN Channels | 4 |
| PWM Channels | 2 |
| Width | 24.1mm |
| Maximum Number of Ethernet Channels | 1 |
| ADC Resolution | 16bit |
| Minimum Operating Temperature | -40 °C |
| Number of Timers | 5 |
| Number of UART Channels | 4 |
