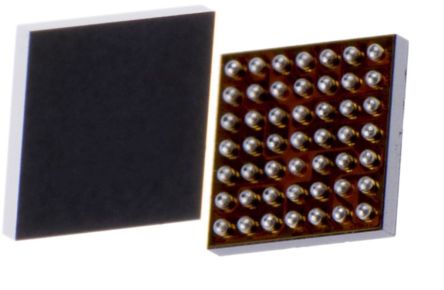

STMicroelectronics STM32L431CCY6TR, 32bit ARM Cortex M4 MCU, 80MHz, 256 kB Flash, 49-Pin WLCSP [STM32L431CCY6TR]; 175-0698
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | STM32L4 |
| Package Type | WLCSP |
| Mounting Type | Surface Mount |
| Pin Count | 49 |
| Device Core | ARM Cortex M4 |
| Data Bus Width | 32bit |
| Program Memory Size | 256 kB |
| Maximum Frequency | 80MHz |
| RAM Size | 64 kB |
| Number of PWM Units | 1 |
| ADC Channels | 10 |
| Number of SPI Channels | 3 |
| Typical Operating Supply Voltage | 3.6 (Maximum) V |
| Number of I2C Channels | 3 |
| Number of Timers | 5 |
| ADCs | 1 (10 x 12 bit) |
| Number of UART Channels | 1 |
| Maximum Operating Temperature | +85 °C |
| Length | 3.17mm |
| Instruction Set Architecture | DSP, RISC |
| Pulse Width Modulation | 1 (6 x 16 bit) |
| PWM Resolution | 16bit |
| Dimensions | 3.17 x 3.16 x 0.38mm |
| Number of CAN Channels | 1 |
| Width | 3.16mm |
| PWM Channels | 6 |
| Number of USART Channels | 3 |
| ADC Resolution | 12bit |
| Height | 0.38mm |
| Timer Resolution | 16 bit, 32 bit |
| Program Memory Type | Flash |
| Minimum Operating Temperature | -40 °C |
| Number of ADC Units | 1 |
