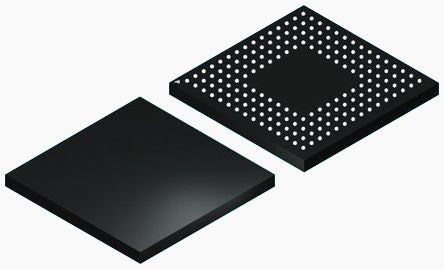

STMicroelectronics STM32L476QGI6, 32bit ARM Cortex M4 MCU, 80MHz, 1 MB Flash, 132-Pin UFBGA [STM32L476QGI6]; 896-7689
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | STM32 |
| Package Type | UFBGA |
| Mounting Type | Surface Mount |
| Pin Count | 132 |
| Device Core | ARM Cortex M4 |
| Data Bus Width | 32bit |
| Program Memory Size | 1 MB |
| Maximum Frequency | 80MHz |
| RAM Size | 128 kB |
| USB Channels | 1 x OTG |
| Number of PWM Units | 2 |
| ADC Channels | 19 |
| Typical Operating Supply Voltage | 3.6 (Maximum) V |
| Number of Timers | 11 |
| ADC Resolution | 12bit |
| PWM Resolution | 16bit |
| Minimum Operating Temperature | -40 °C |
| Length | 7.05mm |
| Maximum Operating Temperature | +85 °C |
| Number of ADC Units | 3 |
| ADCs | 3 (19 x 12 bit) |
| Program Memory Type | Flash |
| Pulse Width Modulation | 2 x 16 bit |
| Dimensions | 7.05 x 7.05 x 0.5mm |
| Timers | 2 x 32 bit, 11 x 16 bit |
| Data Rate | 5Mbps |
| Width | 7.05mm |
| Height | 0.5mm |
| Instruction Set Architecture | RISC |
| Timer Resolution | 16 bit, 32 bit |
