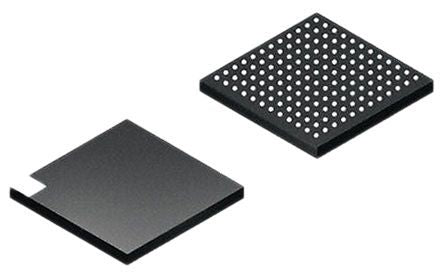

STMicroelectronics STM32L4R9ZIJ6, 32bit ARM Cortex M4 MCU, 120MHz, 2 MB Flash, 144-Pin UFBGA [STM32L4R9ZIJ6]; 175-0791
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | STM32L4 |
| Package Type | UFBGA |
| Mounting Type | Surface Mount |
| Pin Count | 144 |
| Device Core | ARM Cortex M4 |
| Data Bus Width | 32bit |
| Program Memory Size | 2 MB |
| Maximum Frequency | 120MHz |
| RAM Size | 640 kB |
| USB Channels | 1 |
| Number of PWM Units | 2 |
| ADC Channels | 16 |
| Number of SPI Channels | 3 |
| Typical Operating Supply Voltage | 3.6 (Maximum) V |
| Number of I2C Channels | 4 |
| ADCs | 1 (16 x 12 bit) |
| Maximum Operating Temperature | +85 °C |
| Length | 20.2mm |
| Pulse Width Modulation | 2 (6 x 16 bit) |
| Program Memory Type | Flash |
| Dimensions | 20.2 x 20.2 x 1.45mm |
| Timers | 1 (2 x 16 bit), 1 (2 x 32 bit), 1 (5 x 16 bit) |
| Number of USART Channels | 3 |
| Width | 20.2mm |
| PWM Channels | 6 |
| Height | 1.45mm |
| Number of UART Channels | 6 |
| Timer Resolution | 16 bit, 32 bit |
| Number of ADC Units | 1 |
| Number of Timers | 5 |
| Minimum Operating Temperature | -40 °C |
| PWM Resolution | 16bit |
| Instruction Set Architecture | DSP, RISC |
| Number of CAN Channels | 1 |
| ADC Resolution | 12bit |
