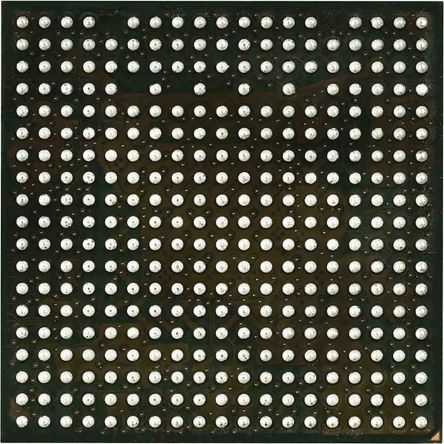

STM32MP153AAC3, 32Bit Microcontrollers [STM32MP153AAC3]; 193-9881
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | STM32 |
| Package Type | TFBGA |
| Mounting Type | Surface Mount |
| Pin Count | 361 |
| Device Core | ARM Cortex A7, ARM Cortex M4 |
| Data Bus Width | 32bit |
| Program Memory Size | 32 kB |
| Maximum Frequency | 209 (ARM Cortex M4) MHz, 650 (ARM Cortex A7) MHz |
| RAM Size | 128 kB |
| USB Channels | 2 |
| ADC Channels | 22 |
| Number of SPI Channels | 6 |
| Typical Operating Supply Voltage | 1.71 → 3.6 V |
| Maximum Operating Temperature | +125 °C |
| ADCs | 2 (22 x 16 bit) |
| Number of Timers | 2 |
| Number of I2C Channels | 6 |
| Number of Ethernet Channels | 1 |
| Length | 12.15mm |
| Number of UART Channels | 4 |
| Timer Resolution | 16 bit, 32 bit |
| Height | 1.05mm |
| Width | 12.15mm |
| ADC Resolution | 16bit |
| Number of USART Channels | 4 |
| Data Rate | 1000Mbit/s |
| Maximum Number of Ethernet Channels | 1 |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 12.15 x 12.15 x 1.05mm |
| Number of CAN Channels | 2 |
| Instruction Set Architecture | RISC |
| Program Memory Type | Flash |
| Number of ADC Units | 2 |
