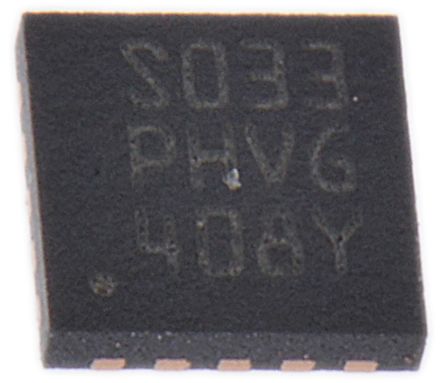

STMicroelectronics STM8S003F3U6TR, 8bit STM8 Microcontroller, 16MHz, 8 kB Flash, 20-Pin UFQFPN [STM8S003F3U6TR]; 145-9462
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | STM8S |
| Package Type | UFQFPN |
| Mounting Type | Surface Mount |
| Pin Count | 20 |
| Device Core | STM8 |
| Data Bus Width | 8bit |
| Program Memory Size | 8 kB |
| Maximum Frequency | 16MHz |
| RAM Size | 1 kB |
| Number of PWM Units | 1 |
| ADC Channels | 5 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 6.5 V |
| Number of Timers | 3 |
| Number of I2C Channels | 1 |
| Number of UART Channels | 1 |
| Timers | 1 x 8 bit, 1(3 x 16 bit), 1(4 x 16 bit) |
| Dimensions | 3 x 3 x 0.55mm |
| Pulse Width Modulation | 1(3 x 16 bit) |
| Program Memory Type | Flash |
| ADC Resolution | 10bit |
| Minimum Operating Temperature | -40 °C |
| PWM Resolution | 16bit |
| Instruction Set Architecture | CISC |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Length | 3mm |
| ADCs | 1(5 x 10 bit) |
| Timer Resolution | 8 bit, 16 bit |
| Height | 0.55mm |
| PWM Channels | 2 |
| Width | 3mm |
