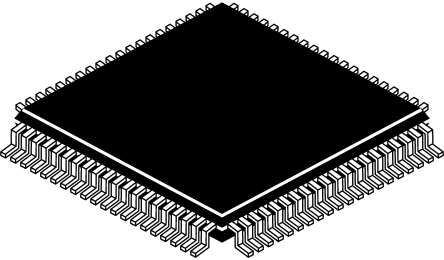

STMicroelectronics STM8S208MBT6B, 8bit STM8 Microcontroller, 24MHz, 128 kB Flash, 80-Pin LQFP [STM8S208MBT6B]; 165-6816
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | STM8S |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 80 |
| Device Core | STM8 |
| Data Bus Width | 8bit |
| Program Memory Size | 128 kB |
| Maximum Frequency | 24MHz |
| RAM Size | 6 kB |
| Number of PWM Units | 1(5 x 16 bit) |
| ADC Channels | 16 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 5.5 V |
| Number of UART Channels | 1 |
| Number of Timers | 4 |
| Number of I2C Channels | 1 |
| Program Memory Type | Flash |
| Number of CAN Channels | 1 |
| Instruction Set Architecture | ARM |
| PWM Resolution | 16bit |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 10bit |
| Pulse Width Modulation | 1(5 x 16 bit) |
| Number of LIN Channels | 1 |
| Height | 1.45mm |
| Timer Resolution | 8 bit, 16 bit |
| ADCs | 1(16 x 10 bit) |
| Length | 10.2mm |
| Maximum Operating Temperature | +85 °C |
| Dimensions | 10.2 x 10.2 x 1.45mm |
| Timers | 1 x 8 bit, 1(4 x 16 bit), 2(5 x 16 bit) |
| Width | 10.2mm |
| Number of ADC Units | 1 |
| PWM Channels | 1 |
