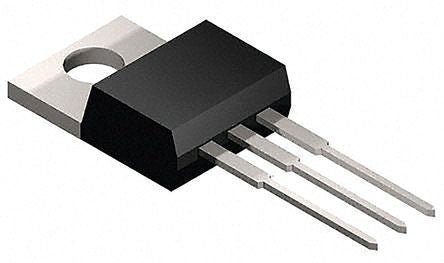

STP45N65M5 N-Channel MOSFET, 35 A, 710 V MDmesh M5, 3-Pin TO-220 STMicroelectronics [STP45N65M5]; 920-8834
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 35 A |
| Maximum Drain Source Voltage | 710 V |
| Package Type | TO-220 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 78 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 5V |
| Minimum Gate Threshold Voltage | 3V |
| Maximum Power Dissipation | 210 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -25 V, +25 V |
| Number of Elements per Chip | 1 |
| Series | MDmesh M5 |
| Transistor Material | Si |
| Height | 15.75mm |
| Typical Gate Charge @ Vgs | 82 nC @ 10 V |
| Length | 10.4mm |
| Maximum Operating Temperature | +150 °C |
| Width | 4.6mm |
