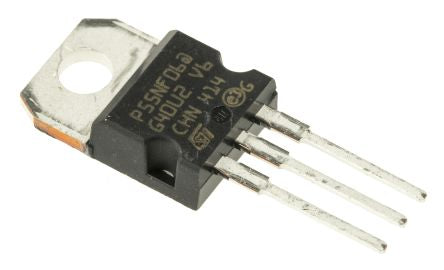

STP55NF06 N-Channel MOSFET, 50 A, 60 V STripFET II, 3-Pin TO-220 STMicroelectronics [STP55NF06]; 485-7715
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 50 A |
| Maximum Drain Source Voltage | 60 V |
| Package Type | TO-220 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 18 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 110 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Height | 9.15mm |
| Maximum Operating Temperature | +175 °C |
| Length | 10.4mm |
| Width | 4.6mm |
| Transistor Material | Si |
| Series | STripFET II |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 44.5 nC @ 10 V |
