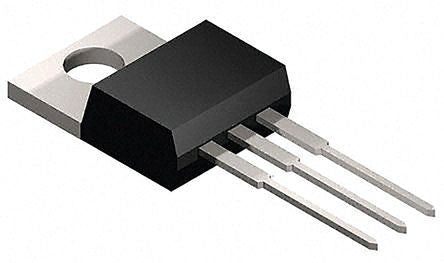

STP80NF55L-06 N-Channel MOSFET, 80 A, 55 V STripFET II, 3-Pin TO-220 STMicroelectronics [STP80NF55L-06]; 920-8720
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 80 A |
| Maximum Drain Source Voltage | 55 V |
| Package Type | TO-220 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 8 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 300 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -16 V, +16 V |
| Number of Elements per Chip | 1 |
| Series | STripFET II |
| Minimum Operating Temperature | -55 °C |
| Length | 10.4mm |
| Maximum Operating Temperature | +175 °C |
| Typical Gate Charge @ Vgs | 100 nC @ 5 V |
| Width | 4.6mm |
| Transistor Material | Si |
| Height | 15.75mm |
