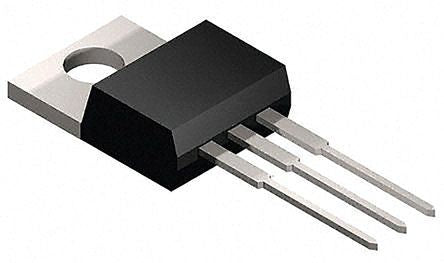

STP8NK100Z N-Channel MOSFET, 6.5 A, 1000 V MDmesh, SuperMESH, 3-Pin TO-220 STMicroelectronics [STP8NK100Z]; 920-6579
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 6.5 A |
| Maximum Drain Source Voltage | 1000 V |
| Package Type | TO-220 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 1.85 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4.5V |
| Minimum Gate Threshold Voltage | 3V |
| Maximum Power Dissipation | 160 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -30 V, +30 V |
| Number of Elements per Chip | 1 |
| Series | MDmesh, SuperMESH |
| Maximum Operating Temperature | +150 °C |
| Length | 10.4mm |
| Typical Gate Charge @ Vgs | 73 nC @ 10 V |
| Minimum Operating Temperature | -55 °C |
| Transistor Material | Si |
| Width | 4.6mm |
| Height | 9.15mm |
