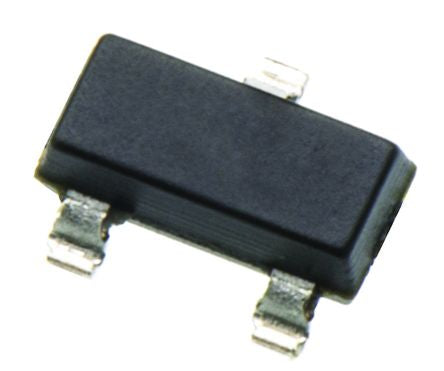

STR2P3LLH6 P-Channel MOSFET, 2 A, 30 V STripFET, 3-Pin SOT-23 STMicroelectronics [STR2P3LLH6]; 145-8882
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 0.0833333333333333 |
| Maximum Drain Source Voltage | 30 V |
| Package Type | SOT-23 |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 90 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.5V |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 350 mW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Height | 1.3mm |
| Width | 1.75mm |
| Forward Diode Voltage | 1.1V |
| Typical Gate Charge @ Vgs | 6 nC @ 4.5 V |
| Transistor Material | Si |
| Maximum Operating Temperature | +150 °C |
| Series | STripFET |
| Length | 3.04mm |
