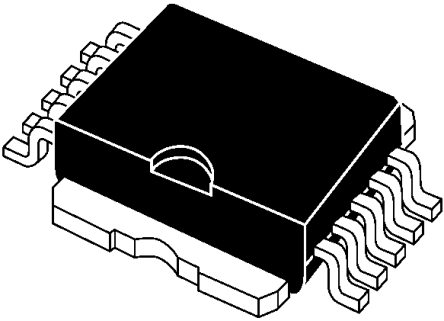

STV240N75F3 N-Channel MOSFET, 240 A, 75 V STripFET F3, 10-Pin PowerSO STMicroelectronics [STV240N75F3]; 165-6617
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 240 A |
| Maximum Drain Source Voltage | 75 V |
| Package Type | PowerSO |
| Mounting Type | Surface Mount |
| Pin Count | 10 |
| Maximum Drain Source Resistance | 2.6 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 300 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Length | 9.6mm |
| Typical Gate Charge @ Vgs | 85 nC @ 10 V |
| Height | 3.75mm |
| Width | 9.5mm |
| Series | STripFET F3 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +175 °C |
| Transistor Material | Si |
