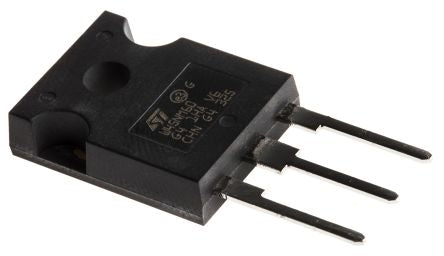

STW45NM60 N-Channel MOSFET, 45 A, 600 V MDmesh, 3-Pin TO-247 STMicroelectronics [STW45NM60]; 714-6800
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 45 A |
| Maximum Drain Source Voltage | 600 V |
| Package Type | TO-247 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 110 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 5V |
| Minimum Gate Threshold Voltage | 3V |
| Maximum Power Dissipation | 417 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -30 V, +30 V |
| Number of Elements per Chip | 1 |
| Length | 15.75mm |
| Maximum Operating Temperature | +150 °C |
| Height | 20.15mm |
| Typical Gate Charge @ Vgs | 96 nC @ 10 V |
| Width | 5.15mm |
| Transistor Material | Si |
| Series | MDmesh |
| Minimum Operating Temperature | -65 °C |
