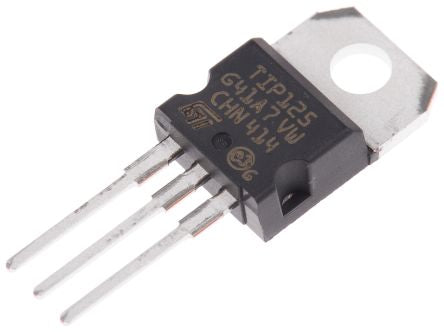

STMicroelectronics TIP125 PNP Darlington Pair, 5 A 60 V HFE:1000, 3-Pin TO-220 [TIP125]; 168-6054
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | PNP |
| Maximum Continuous Collector Current | 0.208333333333333 |
| Maximum Collector Emitter Voltage | 60 V |
| Maximum Emitter Base Voltage | 5 V |
| Package Type | TO-220 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Transistor Configuration | Single |
| Number of Elements per Chip | 1 |
| Minimum DC Current Gain | 1000 |
| Maximum Collector Base Voltage | 60 V |
| Maximum Collector Emitter Saturation Voltage | 4 V |
| Maximum Collector Cut-off Current | 0.2mA |
| Length | 10.4mm |
| Maximum Operating Temperature | +150 °C |
| Height | 9.15mm |
| Width | 4.6mm |
| Dimensions | 10.4 x 4.6 x 9.15mm |
| Minimum Operating Temperature | -65 °C |
