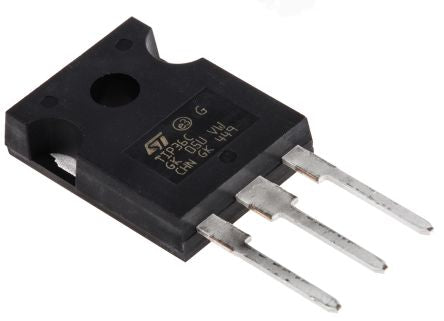

STMicroelectronics TIP36C PNP Transistor, 25 A, 100 V, 3-Pin TO-247 [TIP36C]; 251-3558
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | PNP |
| Maximum DC Collector Current | 25 A |
| Maximum Collector Emitter Voltage | 100 V |
| Package Type | TO-247 |
| Mounting Type | Through Hole |
| Maximum Power Dissipation | 125 W |
| Minimum DC Current Gain | 10 |
| Transistor Configuration | Single |
| Maximum Collector Base Voltage | 100 V |
| Maximum Emitter Base Voltage | 5 V |
| Maximum Operating Frequency | 3 MHz |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature | +150 °C |
| Length | 15.75mm |
| Minimum Operating Temperature | -65 °C |
| Dimensions | 20.15 x 15.75 x 5.15mm |
| Height | 20.15mm |
| Maximum Collector Emitter Saturation Voltage | 4 V |
| Width | 5.15mm |
