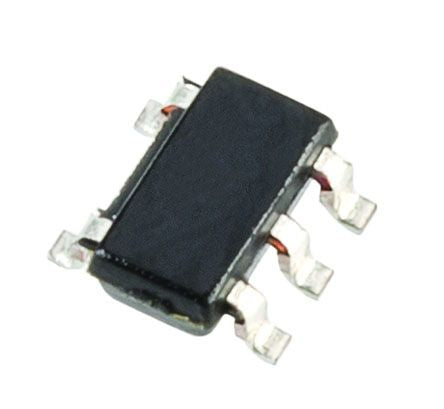

TS971ILT STMicroelectronics, Low Noise, Op Amp, RRO, 12MHz, 2.7 → 10 V, 5-Pin SOT-23 [TS971ILT]; 165-5548
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | Low Noise |
| Mounting Type | Surface Mount |
| Package Type | SOT-23 |
| Power Supply Type | Single |
| Number of Channels per Chip | 1 |
| Pin Count | 5 |
| Typical Single Supply Voltage | 2.7 → 10 V |
| Typical Gain Bandwidth Product | 12MHz |
| Typical Slew Rate | 4V/µs |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Maximum Input Voltage | 10 V |
| Rail to Rail | Rail to Rail Output |
| Length | 3mm |
| Dimensions | 3 x 1.75 x 1.3mm |
| Input Voltage Range | 2.7 → 10 V |
| Minimum Input Voltage | 2.7 V |
| Typical Input Voltage Noise Density | 4nV/√Hz |
| Offset Voltage | 7mV |
| Height | 1.3mm |
| Width | 1.75mm |
| Typical Voltage Gain | 80 dB |
| Input Offset Current | 150nA |
