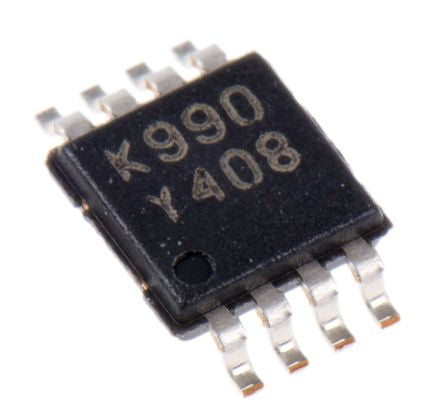

TSB572IYST STMicroelectronics, Low Power, Op Amp, RRIO, 2.5MHz, 8-Pin MiniSOIC [TSB572IYST]; 166-1015
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | Low Power |
| Mounting Type | Surface Mount |
| Package Type | MiniSOIC |
| Power Supply Type | Single |
| Number of Channels per Chip | 2 |
| Pin Count | 8 |
| Typical Gain Bandwidth Product | 2.5MHz |
| Typical Slew Rate | 1V/µs |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Typical Input Voltage Noise Density | 20nV/√Hz |
| Minimum Input Voltage | 4 V |
| Offset Voltage | 2.1mV |
| Output Current | 50 (Source) mA, 65 (Sink) mA |
| Dimensions | 3.2 x 3.1 x 0.95mm |
| Input Offset Current | 35nA |
| Typical Voltage Gain | 114 dB |
| Input Voltage Range | 4 → 36 V |
| Width | 3.1mm |
| Height | 0.95mm |
| Rail to Rail | Rail to Rail Input/Output |
| Maximum Input Voltage | 36 V |
| Length | 3.2mm |
