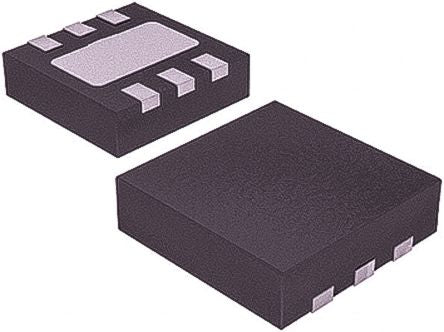

TSU111IQ1T STMicroelectronics, Low Power, Op Amp, RRIO, 11.5kHz, 5 V, 6-Pin DFN [TSU111IQ1T]; 162-3657
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | Low Power |
| Mounting Type | Surface Mount |
| Package Type | DFN |
| Power Supply Type | Single |
| Number of Channels per Chip | 1 |
| Pin Count | 6 |
| Typical Single Supply Voltage | 5 V |
| Typical Gain Bandwidth Product | 11.5kHz |
| Output Type | CMOS |
| Typical Slew Rate | 2.7V/ms |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Input Offset Current | 0.05nA |
| Typical Voltage Gain | 135 dB |
| Minimum Input Voltage | 1.5 V |
| Input Voltage Range | 1.5 → 5.5 V |
| Maximum Input Voltage | 5.5 V |
| Typical Input Voltage Noise Density | 220nV/√Hz |
| Offset Voltage | 235µV |
| Length | 1.2mm |
| Output Current | 41 mA, 45 mA |
| Dimensions | 1.2 x 1.3 x 0.36mm |
| Rail to Rail | Rail to Rail Input/Output |
| Height | 0.36mm |
| Width | 1.3mm |
