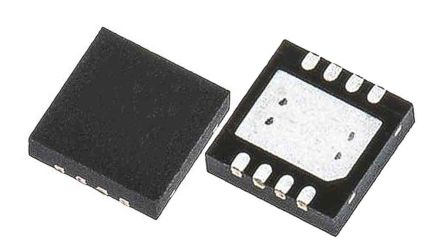

STMicroelectronics, TSV632IQ2T [TSV632IQ2T]; 189-1900
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | Dual Operational |
| Mounting Type | Surface Mount |
| Package Type | DFN |
| Power Supply Type | Single |
| Number of Channels per Chip | 2 |
| Pin Count | 8 |
| Typical Single Supply Voltage | 1.5 → 5.5 V |
| Typical Gain Bandwidth Product | 880kHz |
| Output Type | Rail to Rail |
| Typical Slew Rate | 0.34V/µs |
| Maximum Operating Frequency | 100 kHz |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Typical Voltage Gain | 95 dB |
| Height | 0.55mm |
| Width | 2.15mm |
| Input Offset Current | 100pA |
| Input Voltage Range | 1.5 → 5.5 V |
| Output Current | 69 (Source) mA, 74 (Sink) mA |
| Dimensions | 2.15 x 2.15 x 0.55mm |
| Offset Voltage | 4.5mV |
| Typical Input Voltage Noise Density | 60nV/√Hz |
| Length | 2.15mm |
| Minimum Input Voltage | 1.5 V |
| Rail to Rail | Rail to Rail Input/Output |
| Maximum Input Voltage | 5.5 V |
