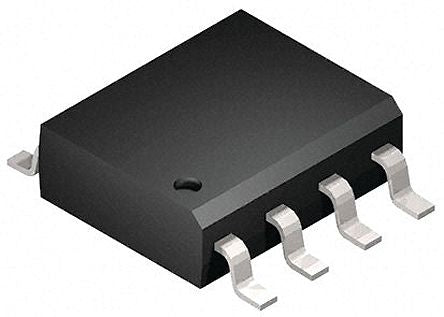

TSZ122IYDT STMicroelectronics, Zero Drift, Op Amp, RRIO, 400kHz, 8-Pin SOIC [TSZ122IYDT]; 163-9794
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | Zero Drift |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Power Supply Type | Dual |
| Number of Channels per Chip | 2 |
| Pin Count | 8 |
| Typical Gain Bandwidth Product | 400kHz |
| Output Type | Rail to Rail |
| Typical Dual Supply Voltage | 5.5V |
| Typical Slew Rate | 0.19V/µs |
| Maximum Operating Frequency | 10 kHz |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Minimum Input Voltage | 1.8 V |
| Typical Input Voltage Noise Density | 60nV/√Hz |
| Rail to Rail | Rail to Rail Input/Output |
| Length | 5mm |
| Maximum Input Voltage | 5.5 V |
| Height | 1.5mm |
| Width | 4mm |
| Input Voltage Range | 1.8 → 5.5 V |
| Typical Voltage Gain | 135 dB |
| Input Offset Current | 0.6nA |
| Dimensions | 5 x 4 x 1.5mm |
| Output Current | 18 mA |
| Offset Voltage | 8µV |
